Series DEB1500
Steel strip grinding and polishing line
DEB1500: Grinding and polishing of double-sided razor blades

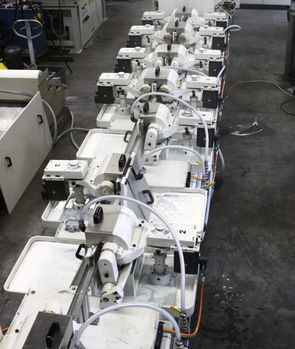

The steel strip grinding and polishing station of the series DEB is configured for the machining of the classic double-sided razor blade with three angles.
The line consists of:
- 4 one-sided pre-grinding stations
- 2 double-sided finishing stations
- 2 double-sided deburring stations
- 4 double-sided polishing stations
- tool wear compensation by means of a AC servomotor and CNC control unit
- control of strip height
- transportable dressing unit for the dressing of grinding wheels
- breaking machine integrated with storing system for up to 400 blades/min
- angle adjustable
- 3°–13° (grinding machine)
- 6°–16° (polishing machine)
- spindle drive 2,2 kW resp. 0,37 kW
- designed for grinding wheel diameter of 160 mm, width of 180 mm
- spiral wheels 152,4 mm diameter, width 127,3 mm
- polishing wheel 150 × 50 × 5 mm
