Series BSM1000/E
One-sided steel strip grinding and serrating machine
BSM1000/E: Scalloped and serrated edge grinding

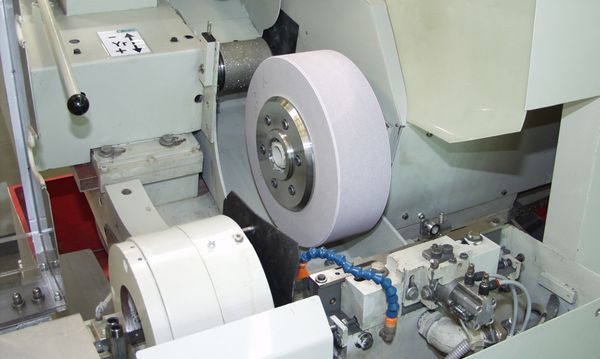

The peripheral grinding station BSM1000/E is designed for one-sided serrated edge coil grinding for the production of hair clipper blades and similar workpieces.
- grinding spindle installed on slide unit with precision guideways
- driven by ball screw and AC servomotor
- grinding spindle automatically shifted sideways, creating pointed teeth after a second plunge
- main motor: 15 kW
- frequency converter: 18,5 kW for programmable, constant peripheral velocity with decreasing wheel diameter, 30–50 m/s
- one-sided precision spindle bearing for grinding wheels, with max. 110 mm width and 450 mm diameter
- central lubrication
- configured for wet machining with grinding emulsion
- dressing unit for diamond-coated dressing rolls, max. 110 mm width
- integrated CNC dressing system available
