SERIES RSP/5S/1R/1L
Robotic system with robot-guided workpiece
RSP/5S/1R/1L: All-around grinding and deburring of workpieces

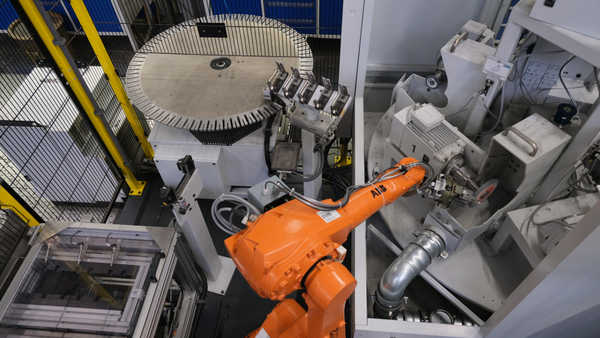

The robot cell is equipped with five processing stations mounted on a rotary table. The workpiece is guided by the robot.
The machining cell is designed for all-round machining of workpieces.
- CNC rotary table for the reception of five processing stations
- five one-sided grinding machines of the series P3, designed for wet grinding with nozzles for intensive cooling
- CNC dressing unit with two CNC axes
- measuring station for workpiece measurement, consisting of two U-shaped lasers, a double laser distance sensor and a tactile Tesa probe
- turning and centering station
- 180° loading table
- robot with gripper changing system
- gripper changing for the machining of the other side of the workpiece
The robotic grinding and polishing systems are designed for the machining of a big range of workpieces. They can be equipped with various processing stations such as belt grinding stations, deburring stations, milling stations, brushing stations, polishing stations, measuring and magazine systems. The configuration of the robotic cell depends on the requirements of the workpiece.
See also magazine systems for robotic grinding and polishing stations.
