Series CG

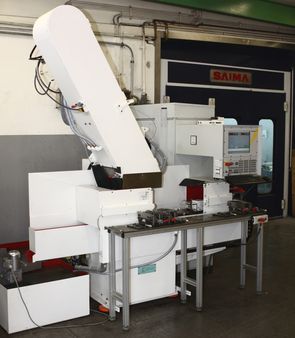

Contour grinding machine
CG: Contour grinding
CNC grinding machine with two axes for contour grinding of knives, scissors, hand tools, tweezers and other workpieces
- wet belt grinding machine with belts of 3,500 mm × 200 mm or with grinding wheel
- two-axle digital Windows control
- contact wheel support in two versions: 100–200 mm or 30–100 mm with additional bearing
- workpiece clamping in magazines with a grinding width of 180 mm and a grinding length of 500 mm
- reutilization of existing magazines
- automatic central grease lubrication system
- automatic cross oscillation
- adjustable belt arm 0–45°
- identification system for magazines for automatic program recall
- sensor programming, measuring of contour shape and feeding data directly to the CNC program by finished or raw parts
- remote control, monitoring and diagnostic via TeamViewer
