Accessories for metal cutting machines – tools and clamping devices
Measuring heads, clamping tools and other options
Various tools and clamping devices can be integrated into profiling and gear shaping centers, such as cutter heads for polygon machining or gear shaping tools for the production of splined shaft profiles.

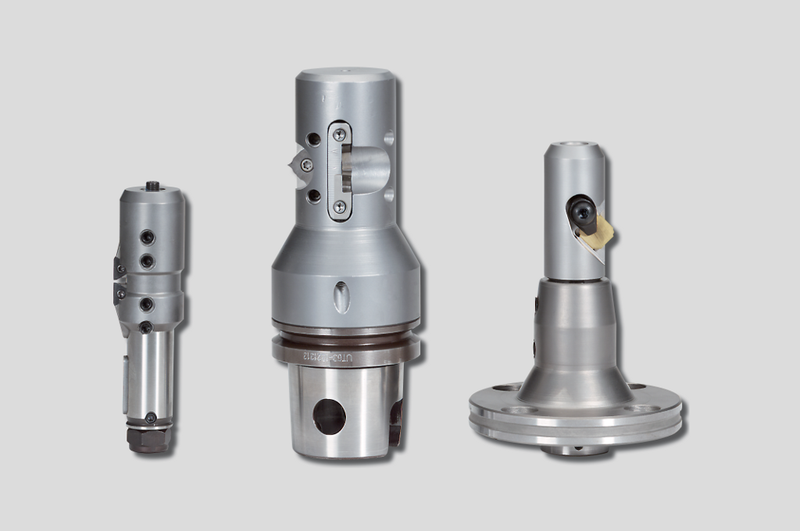

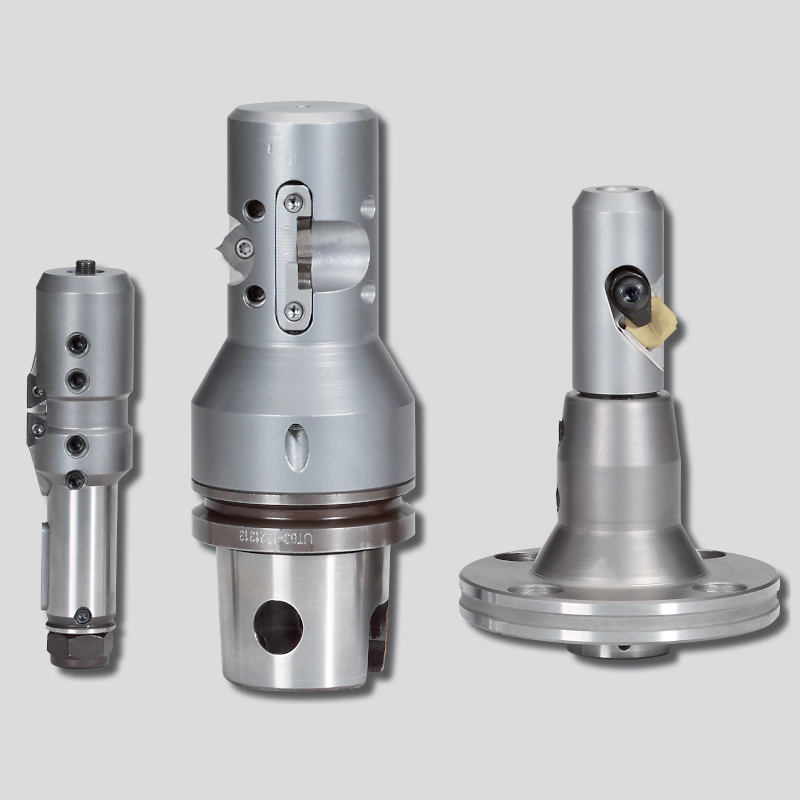

ROLLING IMPACT AND CLAMPING TOOLS
A wide range of tools and clamping devices can be integrated into the LP110 and LP130 impact machining centers.
CUTTER HEADS
We have developed standard cutter heads for polygons, which are generally fitted with commercially available carbide indexable inserts. With a standard ratio of 2:1, all profiles are produced with parallel surfaces. The desired profile is defined by the number of main cutting edges of a cutter head (e.g. one cutting edge processes 2 surfaces; 2 cutting edges process 4 surfaces; 3 cutting edges process 6 surfaces). Additional tool cutting edges in the cutter heads enable simultaneous edge breaking, deburring and cut splitting.
For the vertical system, a wide range of impact tools has been developed for the production of the following profiles:
- Spline profiles
- Hirth serrations
- Front teeth
- Tooth edge deburring
- Special profiles with cone

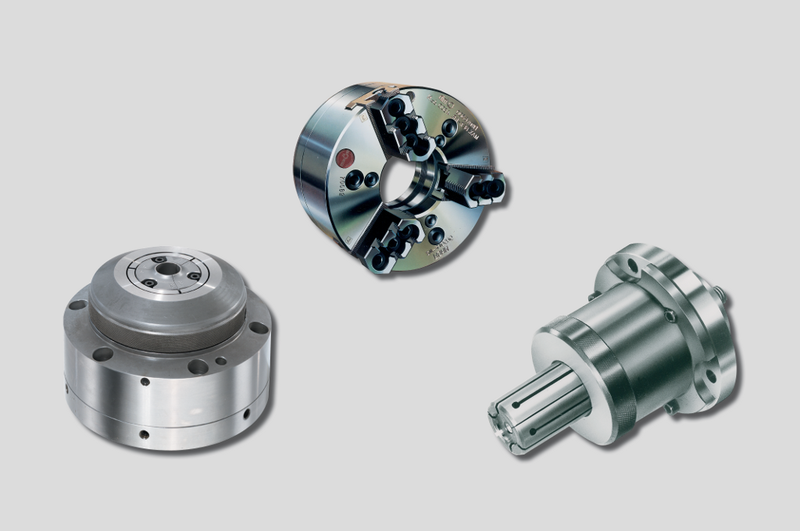

CHUCKING TOOLS
The clamping devices we use meet the highest requirements, even for difficult machining tasks. Reliable clamping and high concentricity guarantee quality products with a long tool life.
The collet chuck was designed for collets in accordance with DIN 6343. Jaw chuck and mandrel solutions are designed by us according to the workpiece-specific requirements.
