Process automation – CNC technology

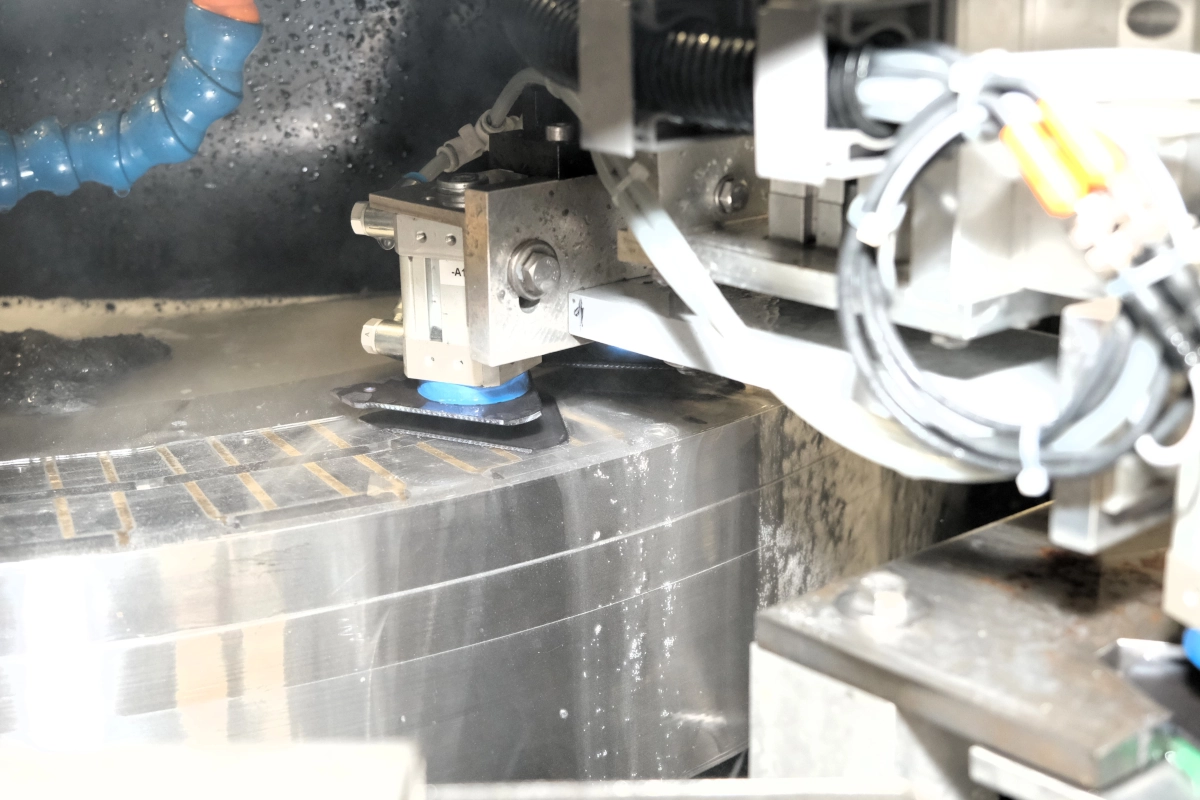

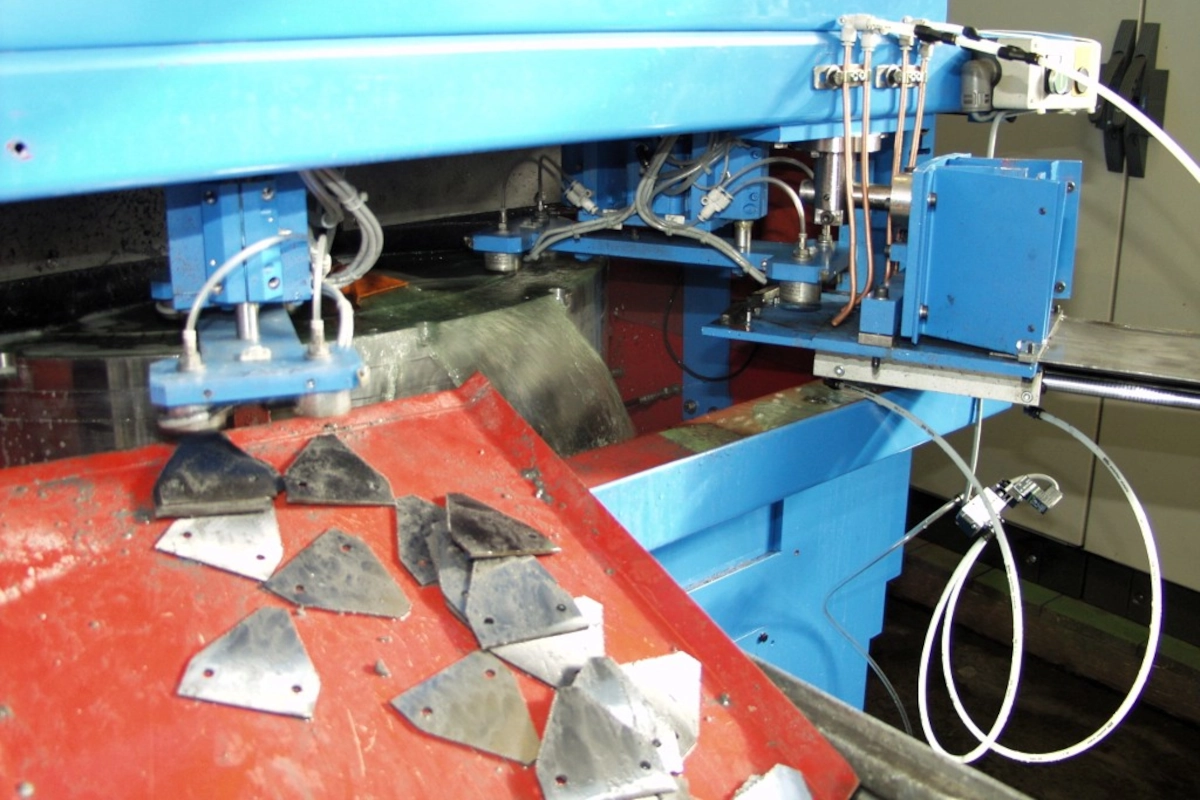

CNC FEEDING SYSTEMS FOR LOADING AND UNLOADING

• CNC control of the horizontal and vertical transfer and loading axes
• Position-accurate approach via brushless AC servo drives
• Simple programming of paths and positions
• Saving the positions once found with the workpiece program
• Freely programmable approach speeds of up to 100 m/min.
• Stable, low-wear and low-maintenance axles with toothed belts or ball screws
• Large loading capacity for several hours of non-stop production
• Space-saving, clear layout with free access to the machines from all sides
• Magazine tower, chain magazine, stacking magazine, rotary indexing table, step conveyor available
• Interlinking of different machine types
• Short changeover times thanks to recall of programmed positions and paths
• NC servo axes 180°, e.g. for loading rotary table grinding machines RTS2/3
