Peripheral grinding machine – WSM series
WSM: SHAFT AND SERRATED GRINDING
CNC peripheral grinding machine with up to three axes for plunge-cut grinding of serrations on knives (e.g. bread or steak knives), scissors, machine knives or comparable workpieces.
WSM: SHAFT AND SERRATED GRINDING
CNC peripheral grinding machine with up to three axes for plunge-cut grinding of serrations on knives (e.g. bread or steak knives), scissors, machine knives or comparable workpieces.
- Simple, direct programming via input of workpiece data/parameters
- CNC control with display for operation/programming
- Horizontal movement of the grinding wheel via servo motor and preloaded ball screw
- Maximum standard machining length 360 mm (other lengths as an option)
- Simple, direct programming via the input of parameters/workpiece data
- Interval-controlled dressing of the grinding wheel via diamond-coated profile roller, dressing roller made of tool steel or programmable single-point diamond

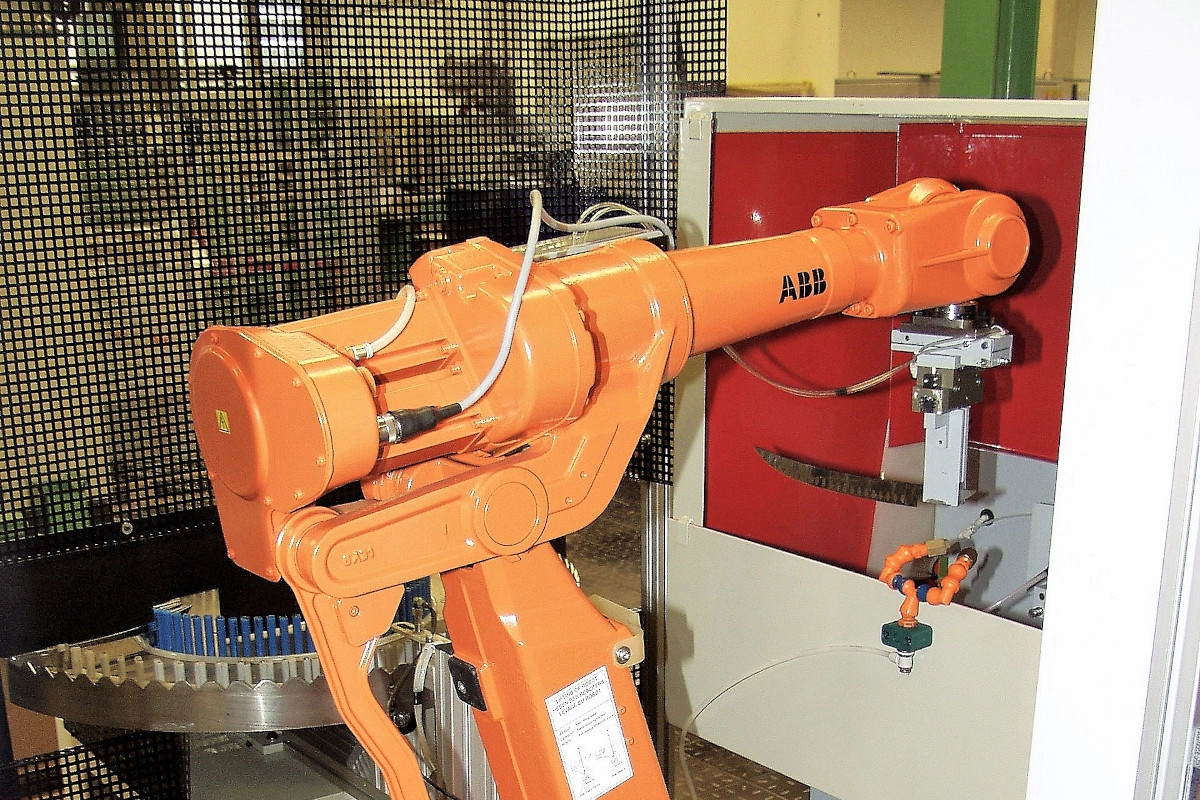

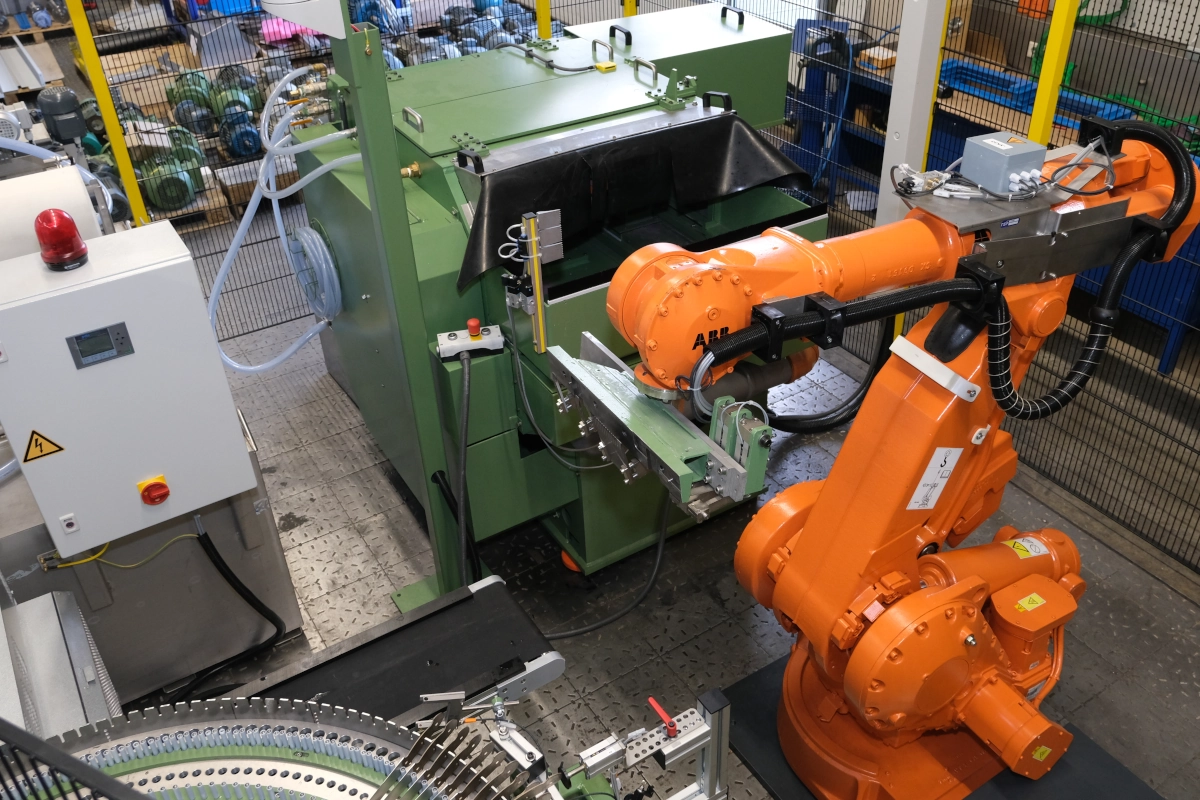

- Programmable movement of the workpiece on a straight grinding wheel (e.g. for steak knives) using a six-axis robot
- Automatic compensation of traverse paths after each dressing cycle as well as adaptation to preset circumferential speed via frequency converter integrated in the control system
- Vertical workpiece movement to the grinding wheel possible
- Single-axis CNC grinding machine

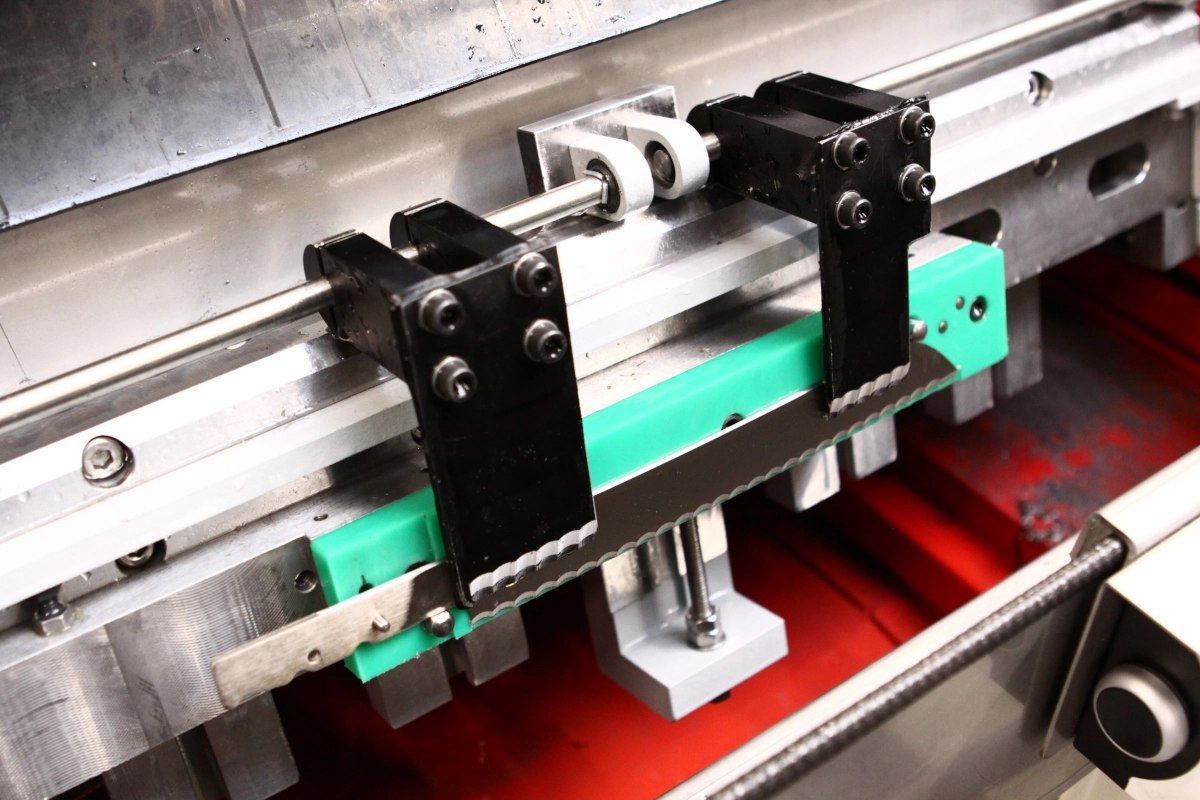

- Pneumatic clamping device picks up the workpieces
- Dressing of the grinding wheel by diamond-coated tool steel forming roller
The following types of this series are available:
WSM/A | WSM/A/AV | WSM/ROBOT
