Milling and drilling machine – DM3 series
DM3: DRILLING OF CIRCULAR KNIVES

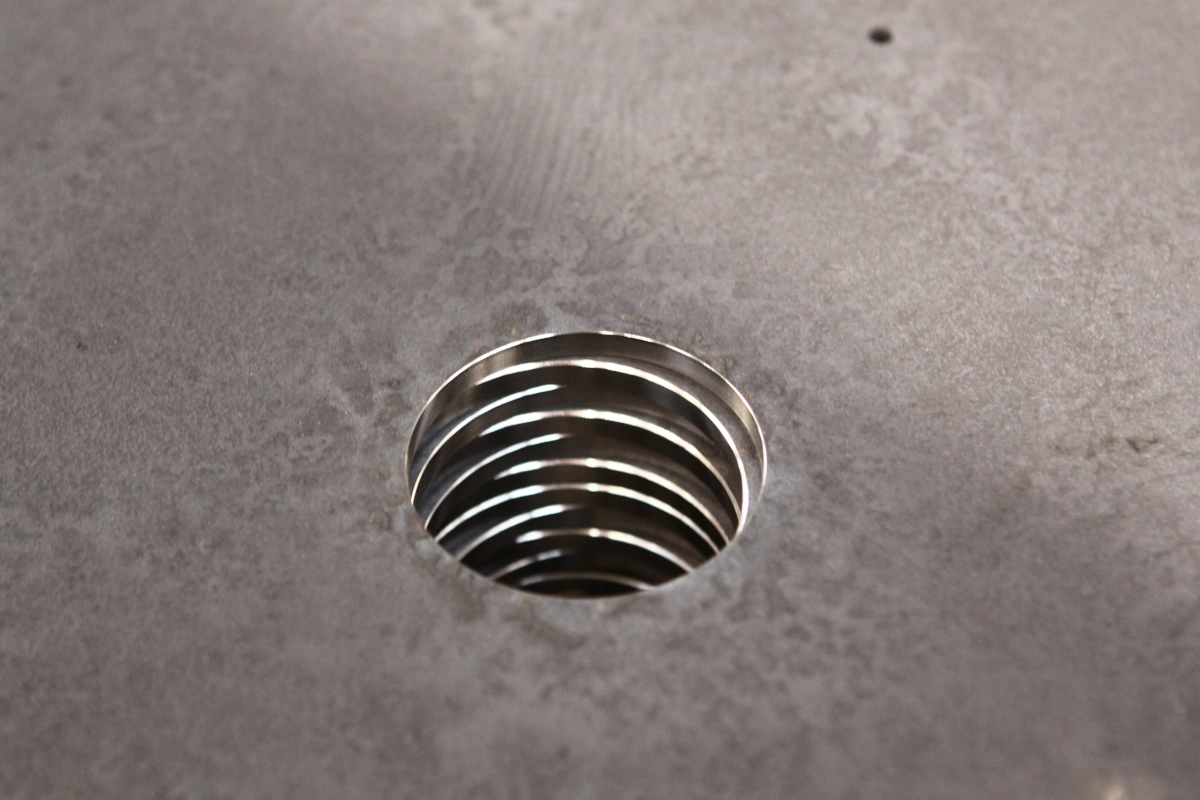

The CNC-controlled DM3 series drilling machine is designed for drilling, countersinking and tapping round knives with a maximum diameter of 1,100 mm.
DM3: DRILLING OF CIRCULAR KNIVES
The CNC-controlled DM3 series drilling machine is designed for drilling, countersinking and tapping round knives with a maximum diameter of 1,100 mm.

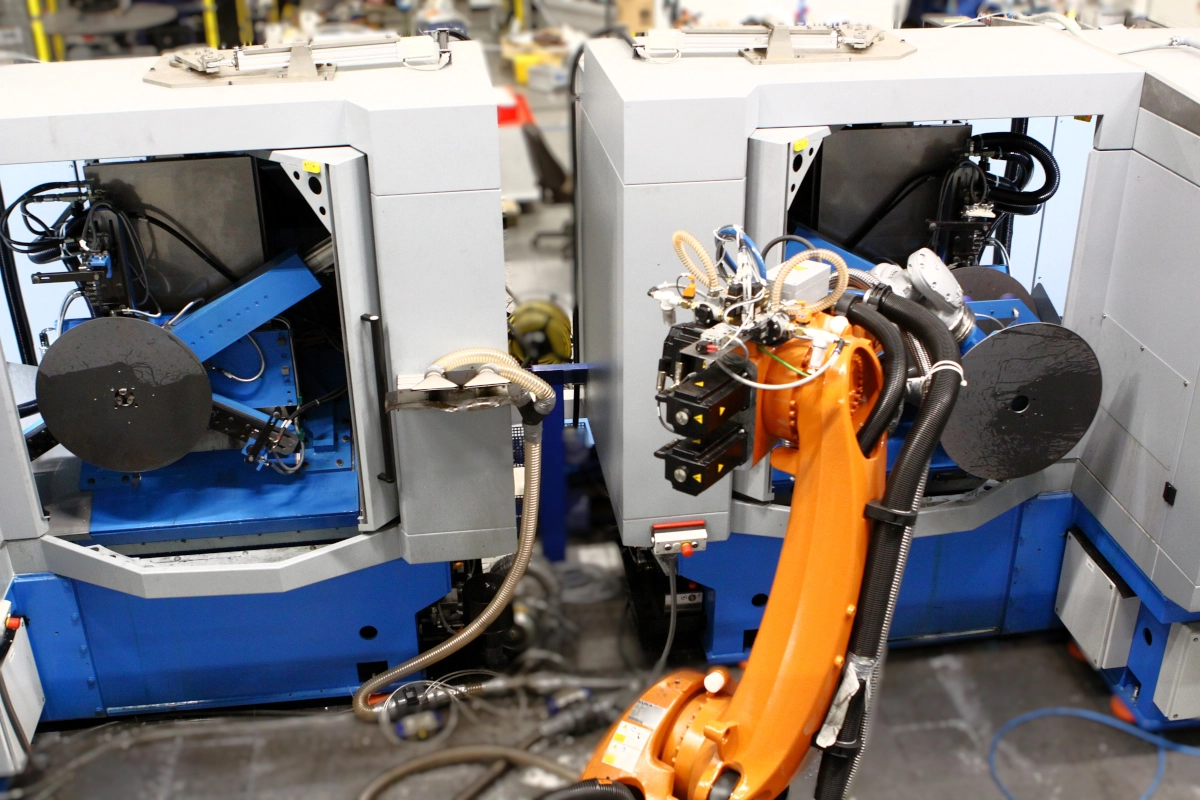

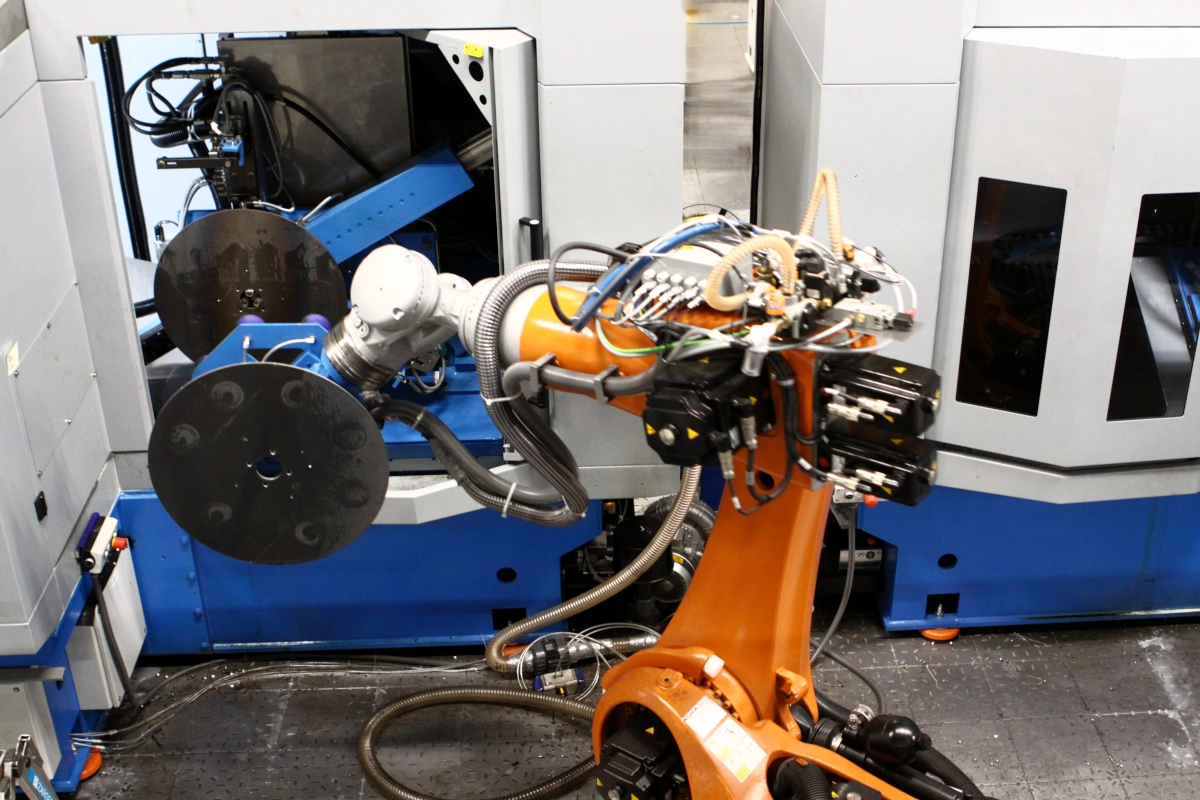

The machine is loaded and unloaded by robots.

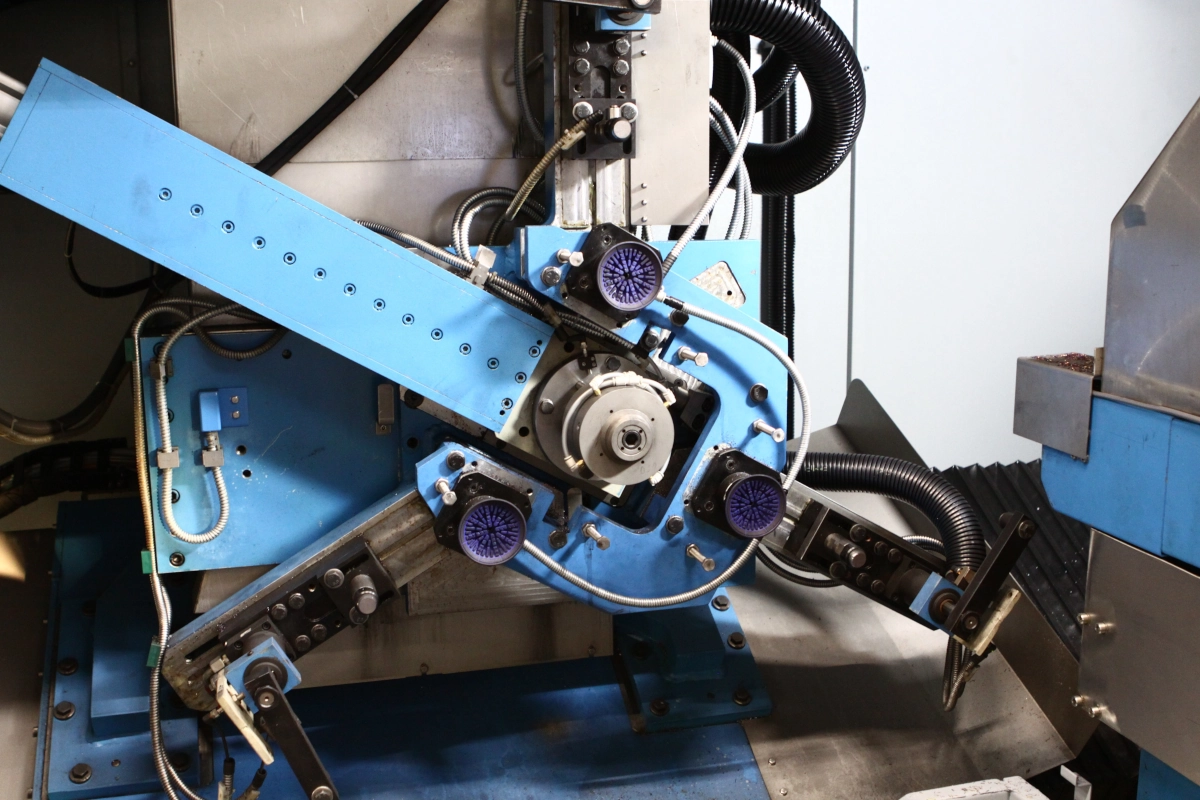

- Feed table in 30° inclined bed design, roller rail guide with direct distance measuring system
- Workpiece feed with two axes
- Coolant system
- Automatic, interval-controlled central grease lubrication with monitoring and error display
- TeamViewer for diagnostic/remote control CNC and PLC function

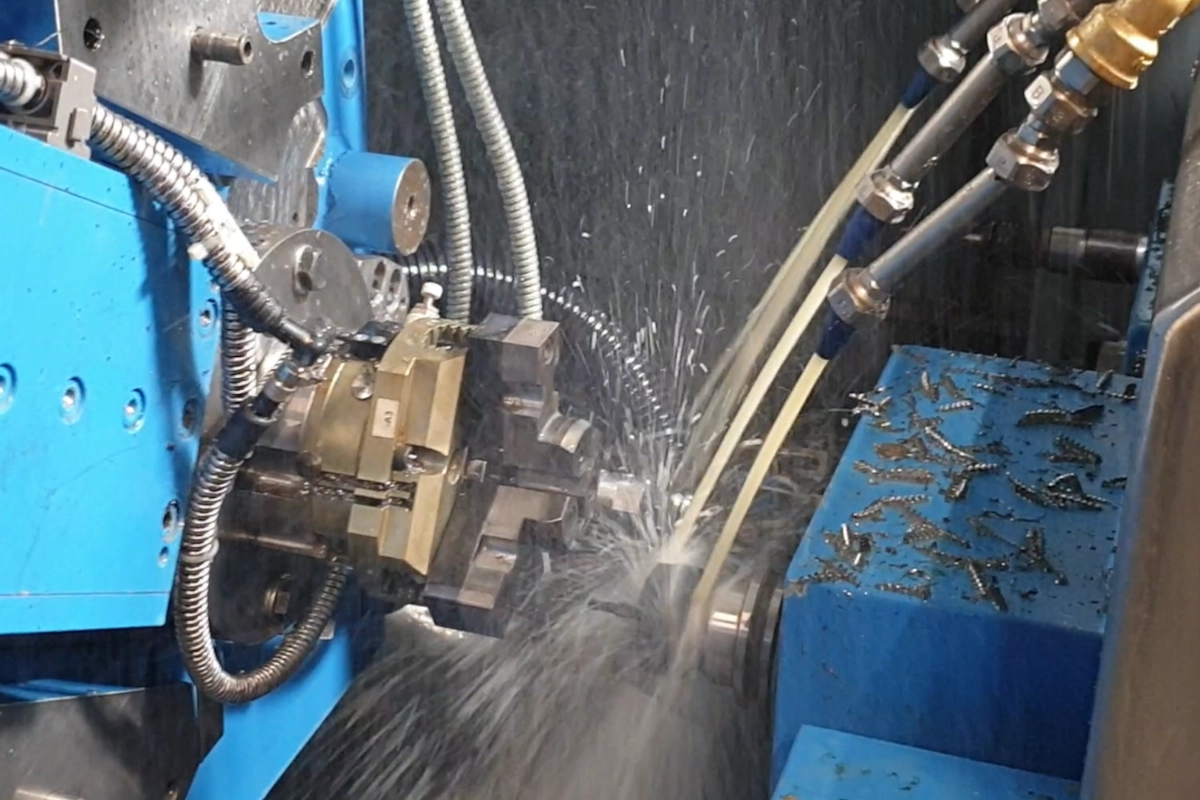

- Machining spindles with CNC feed for drilling, tapping and countersinking
- Ultrasonic sensors with evaluation unit for automatic breakage monitoring and spindle monitoring
- IO-Link interface as Industry 4.0 interface for recording sensor signals including signal supply via bus system
