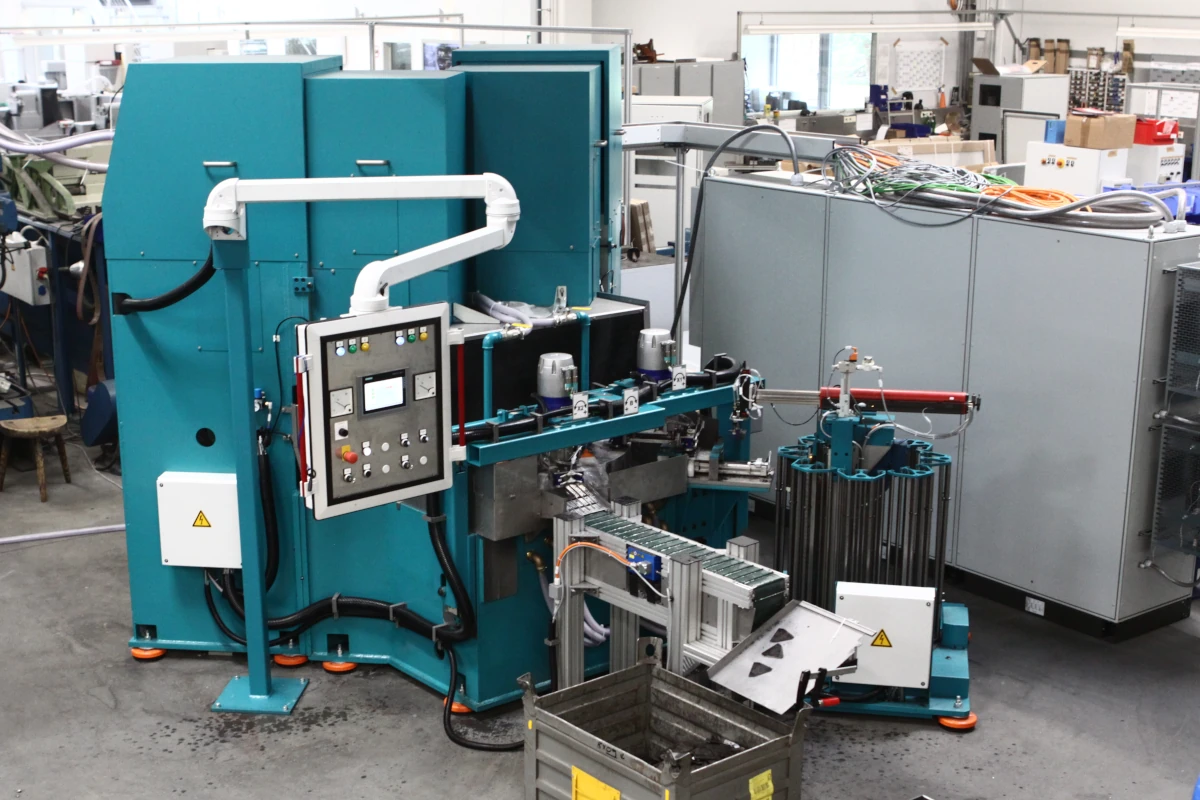

Rotary table grinding machine – RTS series
RTS: Flat grinding
Grinding machine with vertically adjustable spindle for economical surface and bevel grinding, e.g. on machine knives, pocket knife parts or hand tools in a throughfeed process
RTS: Flat grinding
Grinding machine with vertically adjustable spindle for economical surface and bevel grinding, e.g. on machine knives, pocket knife parts or hand tools in a throughfeed process
There are basically three different sizes depending on the slip ring diameter, table diameter and spindle drive.
- Grinding motor 7.5-55 kW
- Mounting flange for grinding wheels from 350-600 mm Ø
- Rotary table speed infinitely variable up to 18 revolutions/min
- Mechanical fixture plates or electromagnetic pole plate 470-1,200 mm Ø
- Mechanical measuring probe for scanning the grinding wheel and tracking wear
- (Option: motorized adjustment with digital display)
- Central lubrication
- Designed for wet processing with grinding emulsion
