Hollow grinding machine – HG series
HG: HOLLOW GRINDING
CNC grinding machine with four axes for hollow grinding on both sides of kitchen knives, steak knives, hunting and sports knives, pocket knives etc. as well as in the field of hand tools (e.g. jigsaw blades)
HG: HOLLOW GRINDING
CNC grinding machine with four axes for hollow grinding on both sides of kitchen knives, steak knives, hunting and sports knives, pocket knives etc. as well as in the field of hand tools (e.g. jigsaw blades)

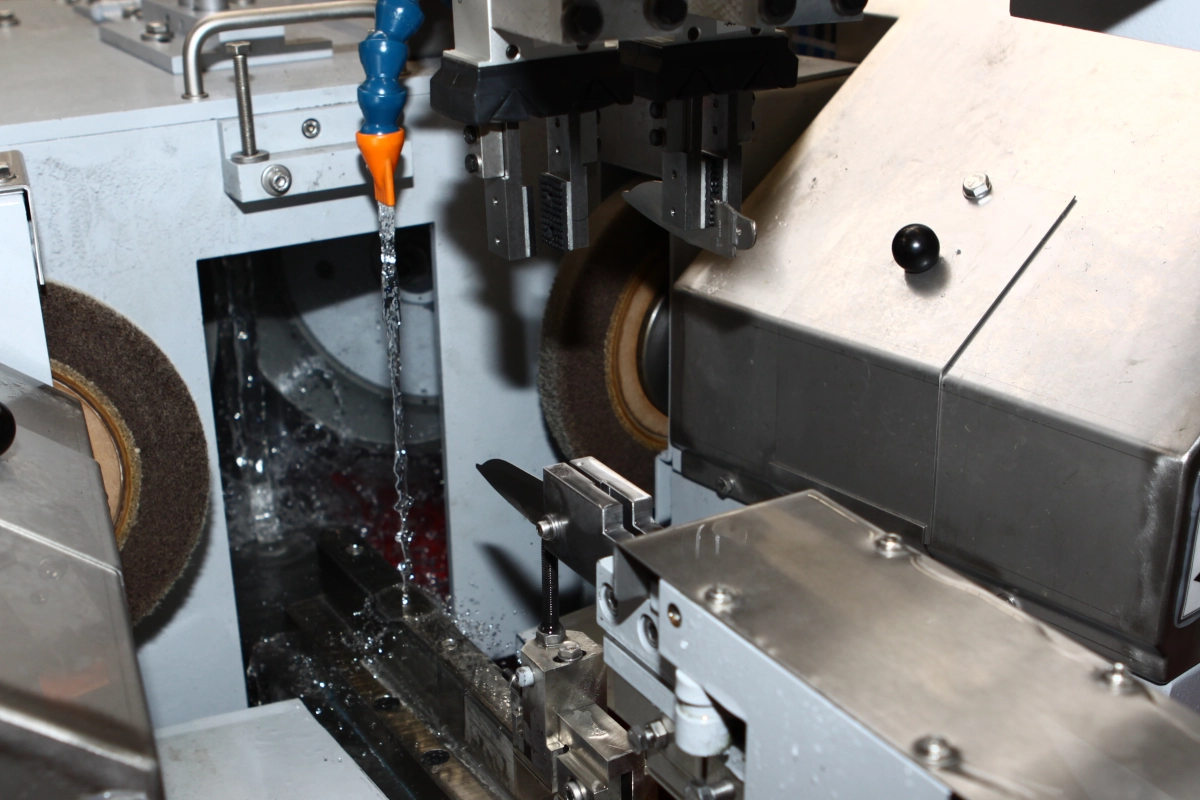

- Grinding with two cup wheels, each at an angle of 45° to the workpiece
- This ensures constant cutting edge width and hollowing, independent of slip ring wear
- Slip ring dimensions depend on material thickness, cutting edge width and cutting edge thickness
- Programming with contour probe installed on grinding machine
- Slip ring diameter of 80, 125, 175, 200 or 220 mm
- Motors fully enclosed and equipped with high-quality moisture protection insulation
- Two digital measuring controls for monitoring slip ring wear integrated into the CNC control system
- Integration of a CNC-controlled Scotch-Brite station for polishing the workpiece in the same set-up
- Individual wear measurement of both grinding wheels and readjustment after each grinding process via CNC feed axes
- Automatic, interval-controlled central grease lubrication
- Digital four-axis Windows control (X, Y and 2 spindle axes)
- Sanding lengths up to 430 mm
- Sensor programming by scanning the contour and exporting the data directly to the programming interface
- The grinding wheels are driven by special motors with precision-bearing shafts
