Measuring stations



Julius Maschinenbau

Measuring technique and CNC technology

JULIUS offers strip edge and strip surface treatment by metal-cutting in a closed loop. Strip width, contour and residual wall thickness of the groove are measured and automatically restored to preset tolerance ranges.

Different measurement systems can be integrated into strip edge trimming and oil grooving lines.

  • Strip width and thickness measurement by  laser systems
  • Cameras for radii and angle condition
  • Measurement systems connected to a closed loop with CNC control or installed as a monitoring system with signal alarm
  • Measurement systems for the adjustment
  • Automatic deviation marking

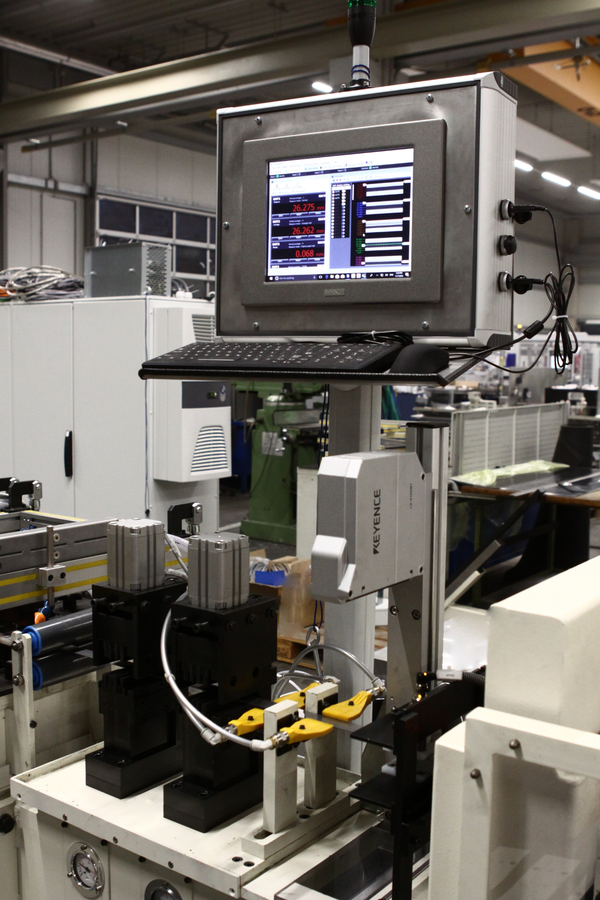

Strip width measurement
CNC controlled tools in combination with measuring technique
